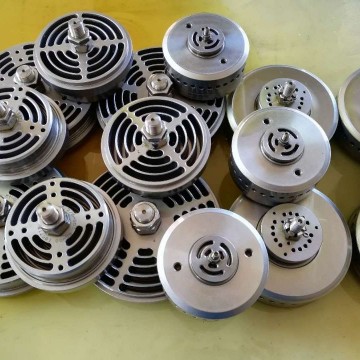

自貢東方通用壓縮機氣閥

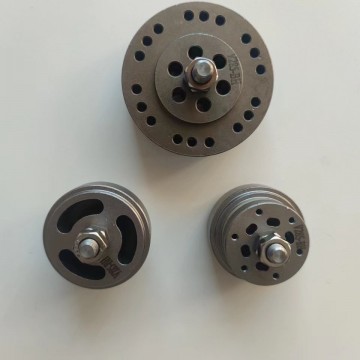

蚌埠鴻申壓縮機氣閥

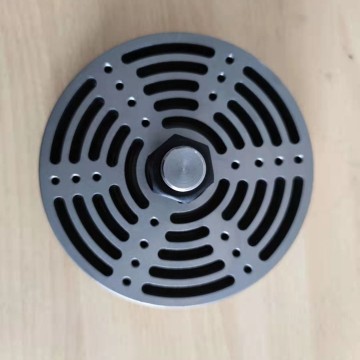

蚌埠安瑞科壓縮機氣閥

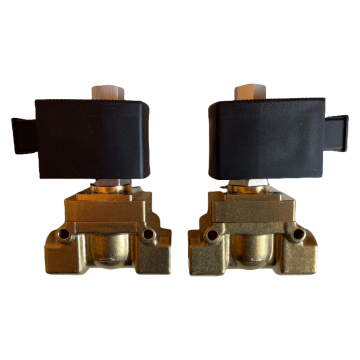

供應各型號船用壓縮機電磁閥

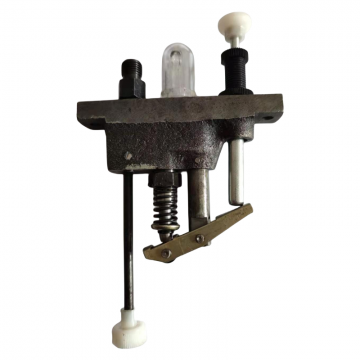

供應空壓機注油器芯子

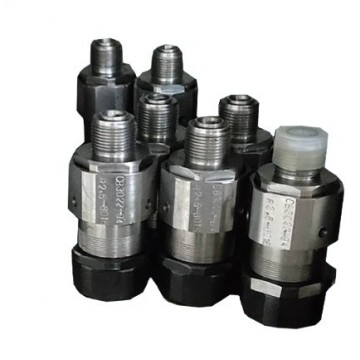

供應WP32L、WP25L、WP18L船用安全閥
- 型號：
- WP18L、WP25L、WP32L
- 品牌：
- 海光
- 產地：
- 上海
型號 | 排氣壓力(MPa) | 級數 | 轉速(50Hz) | 轉速 | 容積流量(m3/h) | 軸功率 | 電機功率(kW) | 冷卻空氣需要量（L/min） | 外形尺寸 |
WP18L | 3.0 | 2 | 970 | 12 | 2.8 | 3 | 12 | 884×640×534 | |
1150 | 14.3 | 3.2 | 4 | 14 | |||||
1450 | 18 | 3.8 | 5.5 | 18 | |||||
1750 | 22 | 4.8 | 5.5 | 22 | |||||
WP25L | 3.0 | 2 | 970 | 16.5 | 3.6 | 4 | 17 | 884×640×534 | |
1150 | 20 | 4.2 | 5.5 | 19 | |||||
1450 | 24.5 | 5.4 | 7.5 | 25 | |||||
1750 | 30.5 | 6.4 | 7.5 | 30 | |||||
WP32L | 3.0 | 2 | 970 | 20.6 | 4.7 | 5.5 | 21 | 930×640×534 | |
1150 | 25 | 5.6 | 7.5 | 25 | |||||
1450 | 31.5 | 6.8 | 7.5 | 31 | |||||
1750 | 38 | 8.2 | 11 | 39 | |||||
WP80L | 3.0 | 3 | 870 | 44 | 9 | 11 | 42 | 1326×780×830 | |
970 | 50 | 10 | 15 | 46 | |||||
1170 | 64 | 13 | 15 | 60 | |||||
1470 | 80 | 15 | 18.5 | 69 | |||||
1770 | 92 | 18 | 18.5 | 83 | |||||
WP100L | 3.0 | 3 | 870 | 59 | 12 | 15 | 53 | 1422×880×1086 | |
970 | 66 | 13.5 | 15 | 59 | |||||
1170 | 78 | 16 | 18.5 | 74 | |||||
1470 | 99 | 20 | 22 | 88 | |||||
1770 | 118 | 24 | 30 | 106 | |||||
WP120L | 3.0 | 3 | 870 | 72 | 14.5 | 15 | 70 | 1422×880×1086 | |
970 | 81 | 16 | 18.5 | 78 | |||||
1170 | 98 | 19 | 22 | 88 | |||||
1470 | 121 | 24 | 30 | 116 | |||||
1770 | 145 | 30 | 37 | 143 | |||||
WP150L | 3.0 | 3 | 870 | 90 | 18 | 18.5 | 89 | 1422×880×1086 | |
970 | 100 | 20 | 22 | 99 | |||||
1170 | 117 | 23 | 30 | 111 | |||||
1470 | 150 | 30 | 37 | 148 | |||||
1770 | 180 | 38 | 45 | 176 | |||||
WP250L | 3.0 | 3 | 870 | 135 | 26.5 | 30 | 130 | 1590×930×1117 | |
970 | 150 | 29.5 | 30 | 145 | |||||
1170 | 180 | 37 | 45 | 180 | |||||
1470 | 225 | 44 | 45 | 217 | |||||
1770 | 175 | 53 | 55 | 264 | |||||
WP300L | 3.0 | 3 | 870 | 180 | 33.6 | 37 | 155 | 2116×926×1026 | |
970 | 200 | 37.5 | 45 | 173 | |||||
1170 | 240 | 44 | 45 | 203 | |||||
1470 | 300 | 54 | 55 | 259 | |||||
1770 | 350 | 69 | 75 | 319 | |||||
WP18L | 0.8/1.0 | 1 | 1170 | 20 | 2.1 | 3 | 11 | 884×640×534 | |
1 | 1450 | 24 | 2,.5 | 3 | 14 | ||||
1 | 1750 | 30 | 3.2 | 4 | 18 | ||||
WP25L | 0.8/1.0 | 1 | 1170 | 38 | 3.6 | 4 | 20 | 884×640×534 | |
1 | 1450 | 44 | 4.2 | 5.5 | 24 | ||||
1 | 1750 | 55 | 4.2 | 5.5 | 36 | ||||
WP32L | 0.8/1.0 | 1 | 970 | 38 | 5.4 | 5.5 | 30 | 930×640×534 | |
1 | 1170 | 45 | 5.6 | 7.5 | 46 | ||||
1 | 1450 | 56 | 6.8 | 7.5 | 56 | ||||
1 | 1750 | 68 | 8.2 | 11 | 68 |
